7.0″ IPS Display, 1024×600, 700 Nits without Touch Panel
-
S070BWS52HP
-
7.0"丨1024 x 600Pixels
-
IPS with All viewing angle
-
None
-
RGB
-
None
-
-20°C~+70°C
Product Description

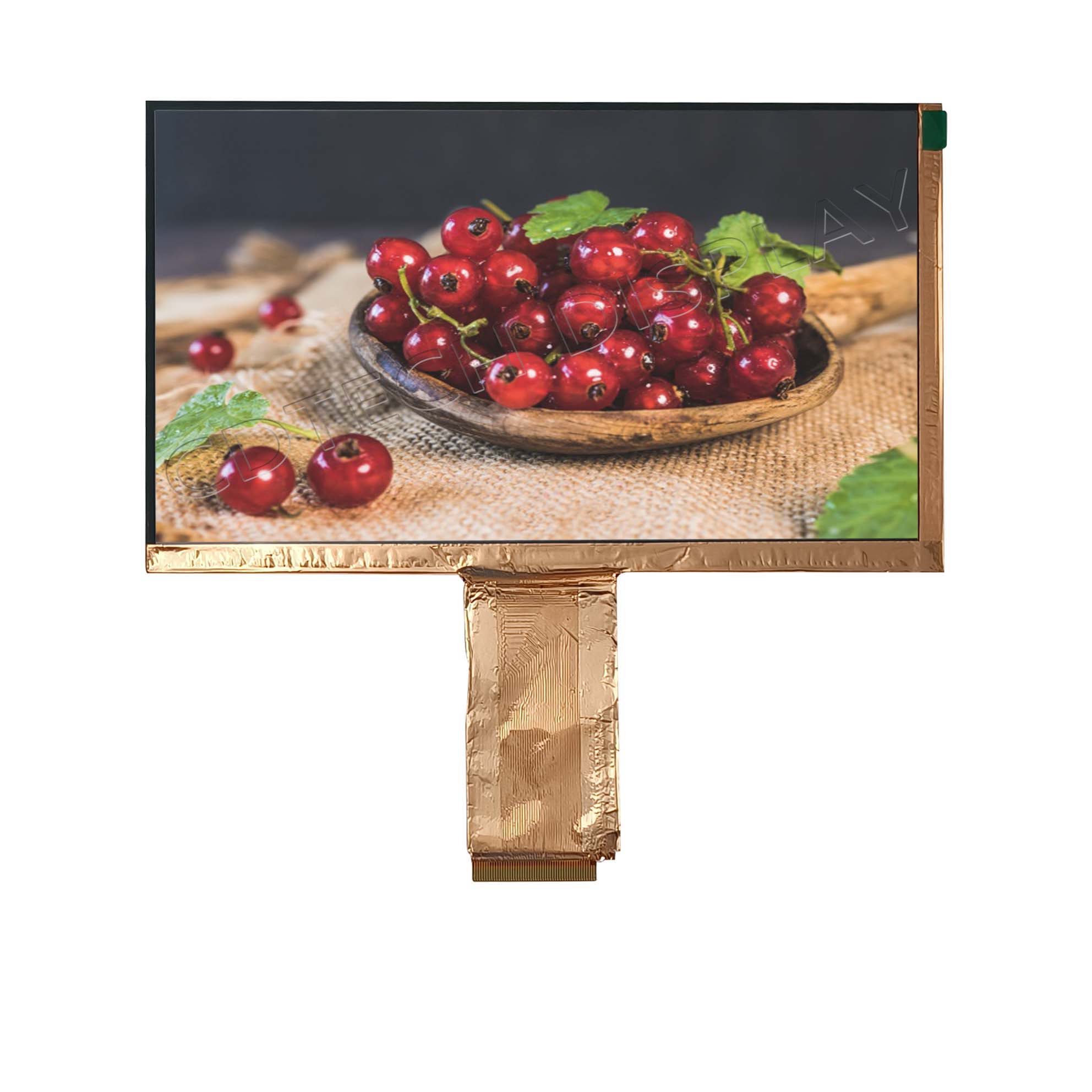

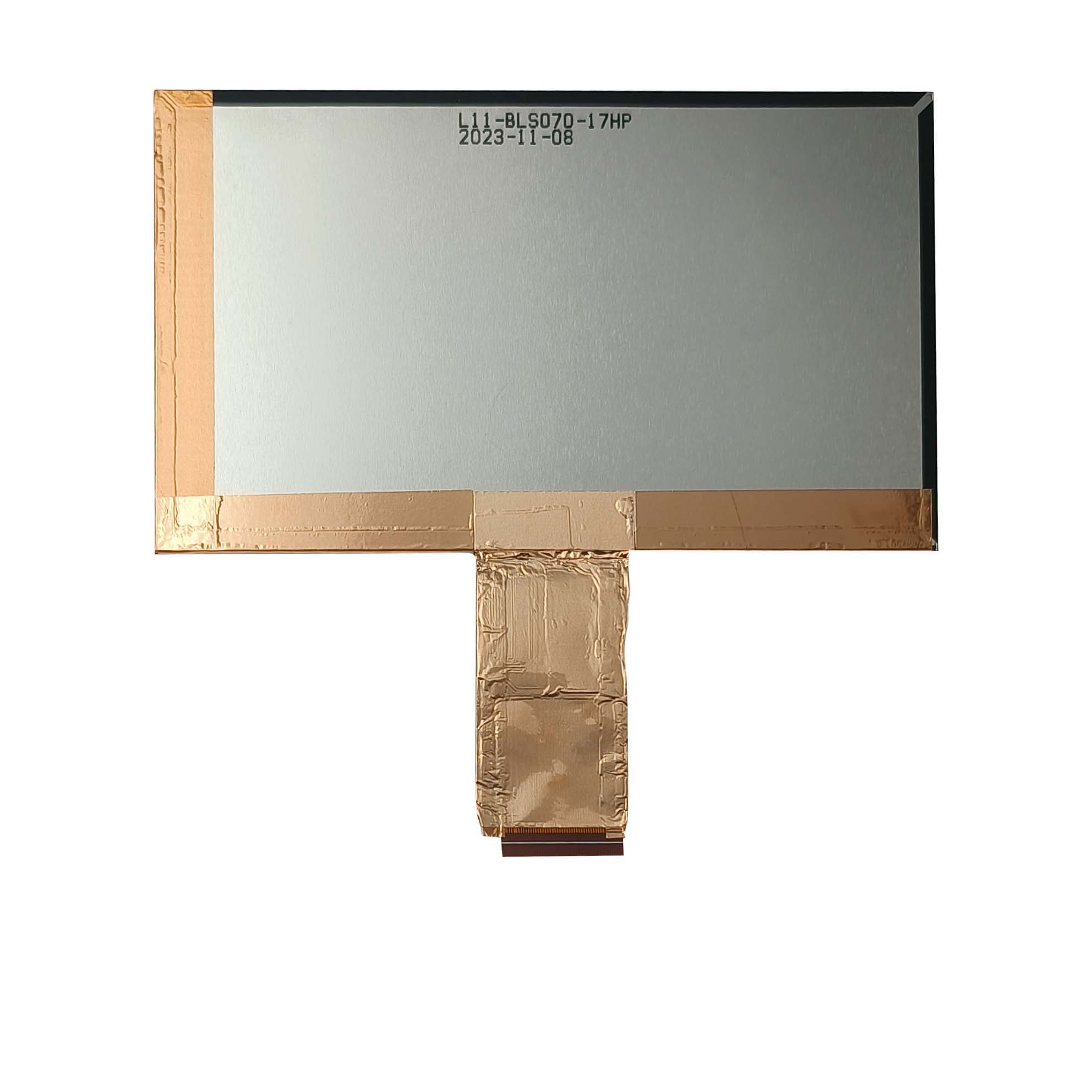

This 7.0-inch LCD display. Full IPS view for best viewing. 1024 x 600 pixels of clarity. Brightness 700 nits, contrast 800:1, vivid display.
This 7-inch standard TFT LCD also uses the popular RGB interface for powerful graphics effects. The display uses a 50-pin FFC connection to ensure hassle-free electrical connections. Powered by the EK79001HN+EK73215BCGA controller, this TFT LCD provides excellent performance and reliability.
In industrial applications, it provides accurate and reliable visual information for control panels and monitoring systems. Choose CDTech for an enhanced visual experience and seamless operation.
Product Specification
| LCD Size | 7.0 inch |
| LCD Resolution | 1024x 600pixels |
| LCD Active Area | 154.21 x 85.92 (mm) |
| LCD Luminance | 700nits |
| LCD Viewing Angle | IPS with All viewing angle |
| LCD Interface | RGB |
| LCD Controller | EK79001HN+EK73215BCGA |
| LCD Connection Type | FPC: 50PIN with 0.3 pitch |
| LCD Backlight Array | 10 Strings with 3 LED on each string |
| LCD Backlight Controller | None |
| LCD Backlight Driving | IF=20*10mA , VF=9.6~0.6V |
| LCD Outline Dimension | 163.52 x 96.72 x 2.6 (mm) |
| CTP structure | None |
| CTP interface | None |
| CTP Controller | None |
| CTP Outline Dimension | None |
| CTP Connection Type | None |
| Product Outline Dimension | 163.52 x 96.72 x 2.6 (mm) |
| Product Operation Temp | -20°C~+70°C |
| Product Storage Temp | -30°C~+80°C |
