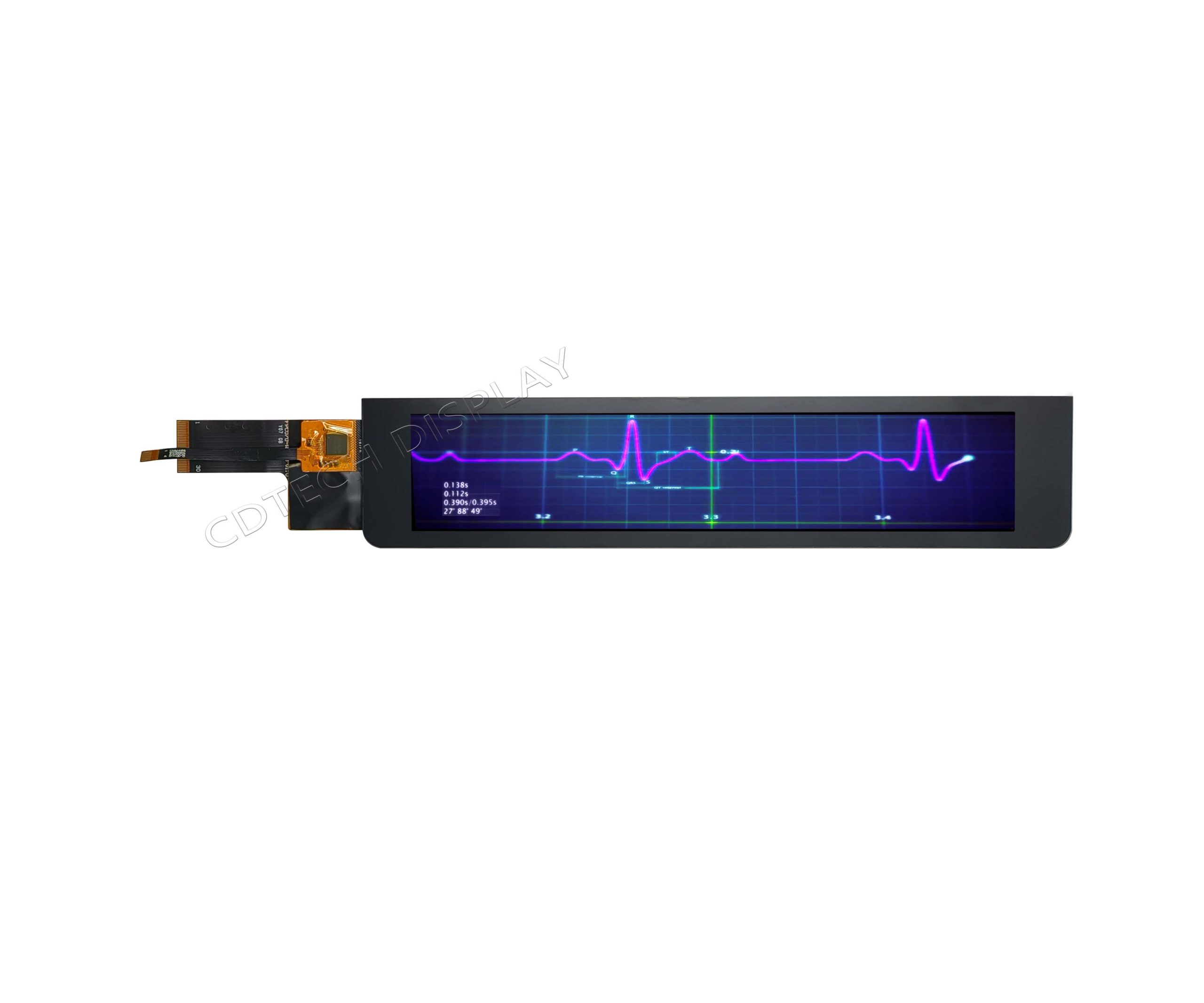

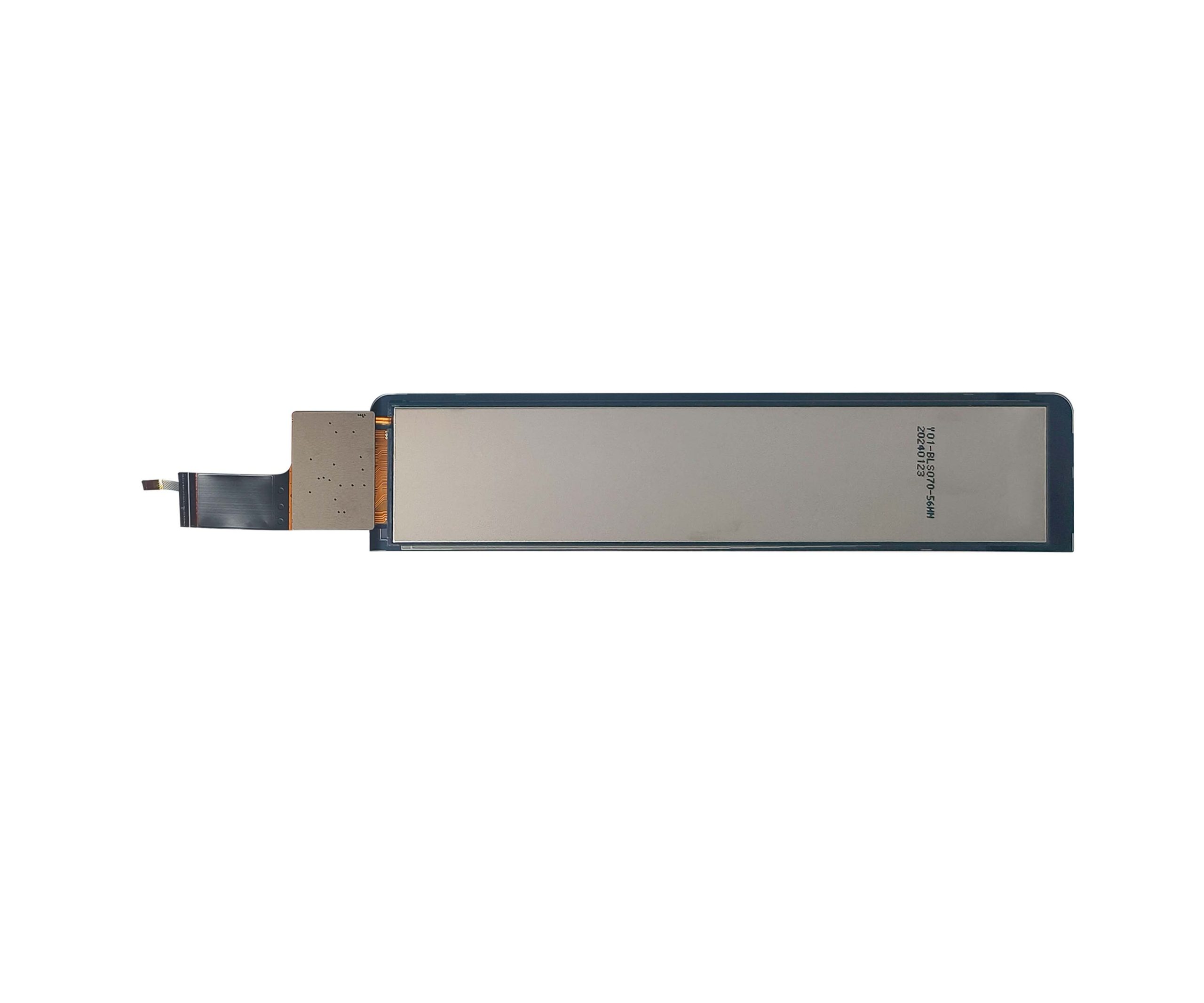

7.0" 500 Nits PCAP IPS Bar Display 280×1424

7.0″ 500 Nits PCAP IPS Bar Display 280×1424 | MIPI-DSI Interface

Model :
S070HWX153HN-FC102
Size :
7.0"丨280 x 1424Pixels
Display Type :
IPS with All viewing angle
Touch Panel :
Capactive with l²C interface
LCD interface :
MIPI
CTP interface :
I2C
Operation Temp :
-20°C~+70°C
Driver IC :
OTA7290B
CTP Controller :
FT5446IDQQ
Resources :
Specification

|2D Drawing

Message Email

Product Description

7.0-inch Projected Capacitive Touch (PCAP) display integrated with an IPS bar LCD panel, designed for medical devices (e.g., syringes, infusion pumps) and industrial control systems. Features high reliability and precise interactive performance.

Display Specs
- Size: 7.0 inches
- Resolution: 280 × 1424 pixels (bar aspect ratio)
- Brightness: 500nits Medium (suitable for indoor medical environments)
- Interface: Custom 2-lane MIPI, powered by OTA7290B

Touch Module
- Technology: PCAP multi-touch support
- Bonding: OCA optical clear adhesive for high transmittance and durability
- Controller IC: FT5446IDQQ with I²C interface

Environmental Performance
- Operating Temp.: -20°C to +70°C
- Storage Temp.: -30°C to +80°C
- Protection: FPC shield film for EMI resistance

Technical Advantages

Precision Interaction: PCAP technology supports multi-finger gestures with ≤10ms response time, ideal for medical device accuracy.
Robust Design: Wide temperature range and anti-interference features meet harsh industrial requirements.
Visual Clarity: IPS bar display ensures sharp visuals with 280×1424 resolution for medical HMI applications.
Compact Integration: OCA bonding reduces thickness for space-efficient device designs.

Applications

Medical: Syringes, infusion pumps, medical monitors
Industrial: Automation systems, test instruments
Consumer Electronics: Bar-shaped smart terminals

Product Specification

LCD Size	7.0 inch
LCD Resolution	280 x 1424pixels
LCD Active Area	33.60 x 170.88 (mm)
LCD Luminance	500nits
LCD Viewing Angle	IPS with All viewing angle
LCD Interface	MIPI
LCD Controller	OTA7290B
LCD Connection Type	FPC: 30PIN with 0.5 pitch，Connector FH12-30S-0.5HS(55)
LCD Backlight Array	2 Strings with 8 LED on each string
LCD Backlight Controller	None
LCD Backlight Driving	IF=40mA , VF= 21.6~27.2V
LCD Outline Dimension	43.3 x 201.00 x 3.50 (mm)
CTP structure	G+FF
CTP interface	I2C
CTP Controller	FT5446IDQQ
CTP Outline Dimension	43.3 x 201.00 x 1.53 (mm)
CTP Connection Type	FPC: 6 PIN with 0.5 pitch
Product Outline Dimension	43.3 x 201.00 x 5.23 (mm)
Product Operation Temp	-20°C~+70°C
Product Storage Temp	-30°C~+80°C

Recommendations for use

LCD Customization

CDTech’s own bar type display cutting technology patent, and have many standard bar type lcd range from 2.9”~12.3”；CDTech also can support customized different narrow AA LCD size according to the characteristics of different product appliances, to provide customer a wide range of sizes in Bar type TFT LCD， Suitable for home appliances and other products requiring special AA size LCD；
Touch Panel Customization

There are three methods of bonding for LCD with touchscreen/coverglass. CDTech can support Air/OCA/LOCA option. For smart home, in-vehicle and outdoors projects, more customers prefer the OCA bonding option. LOCA is suitable for LCD with bezel on uneven surface, and can be repaired, and widely used in large panels. Also, deal with filling gaps because it is a liquid.
Usage Guidelines

CDTech’s LCD products have high quality reliability, allowing customers to use them for a long time without easily breaking down. However, we also suggest that customers will follow the correct operation or storage methods when using them: try to avoid direct contact with the FPC gold fingers with hands to prevent oxidation. It is recommended to wear anti-static gloves or finger cots for operation, and ensure effective grounding. When the products are not used for a long time, they should not be stored in high-temperature and high-humidity environments for a long time, but should be stored in a warehouse with appropriate temperature and humidity.

Quality Standards

CDTech adheres to a Zero Defect Quality Policy, which includes not only product quality but also the work quality of all departments in the company. This will make our products, quality, service, and technical support exceed your expectations.

All of our products, from evaluation, design, production, inspection to after-sales service, follow the following standards in the process.

Project Evaluation	Comprehensively and accurately understand and evaluate customer requirements, including performance, specifications, usage environment, special characteristics, safety characteristics, etc. Identify and evaluate potential risk factors.
Product Design	Strictly follow the requirements of ISO9001 and IATF16949 systems for product design, while also considering material selection, manufacturability and assemblability, past successful product structures and experiences to ensure effective implementation in subsequent production. In the sample stage, verify according to the reliability test requirements in the specification.
Production Control	All important processes of LCM and CTP are produced by CDTech itself, ensuring effective control and assurance of the production process. Strictly follow the production process to ensure that each operation meets established standards, select high-quality raw materials that meet specification requirements, and ensure the stability of product performance.
Production Inspection	All CDTech products have undergone 100% functional testing and visual inspection to ensure that they meet design requirements and customer expectations.
After Sales Service	We have established a rapid response mechanism to promptly handle customer feedback and complaints. Usually, we can reply to customers within 1 day about the possible causes of defects and temporary measures, issue a defect judgment report within 3 days of receiving the defective product, and issue an 8D analysis and improvement report within 7 days.
Product Lifetime	The lifetime of our product is determined by the lifetime of the LED in the backlight, usually 30000 hours or 50000 hours. Please refer to the specifications for details.
Warranty period	The warranty period of CDTech is one year according to LCD industry standards. Within one year, any product with any problems can receive free after-sales service and returns. After one year, CDTech can still provide paid after-sales service.
ESD Protection	All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
